| モデル番号: | QSNT-G3 |
| MOQ: | 1PC |
| 価格: | Price:Negotiable |
| 支払条件: | ウエスタンユニオン、T/T、D/P、L/C |
| 供給能力: | 200pcs/月 |

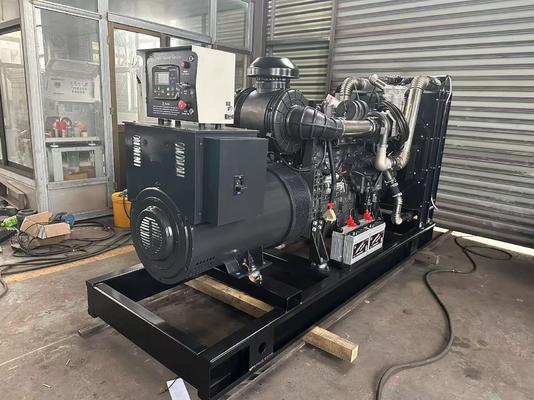

Featuring Engine with Smartgen Control System, available in both Open and Soundproof configurations.
| Genset Parameters | |
|---|---|
| Model | MB-320 |
| Output Power | 320KW/400KVA |
| Power Factor | COSΦ=0.8 (lagging) |
| Maximum Output Current | 576A |
| Weight | 3000kg (Net) |
| Dimensions | 3300*1150*1800mm |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Diesel Engine Specifications | |
|---|---|
| Manufacturer | Diesel Engine |
| Model | QSNT-G3 |
| Rotate Speed | 1500RPM |
| Power | 358KW/392KW |
| Fuel Consumption | ≤ 205g/kw.h |
| Cylinder/Stroke | 140*152 mm |
| Compression Ratio | 16.7:1 |
| Displacement | 14L |
| Configuration | 6-cylinder in-line, four-stroke, water-to-air cooling |
| Cooling Mode | Liquid Cooled |
| Speed Control System | Electronic |
| Starting Mode | 24V DC |
| Filter System | Dry air filter, fuel filter, oil filter |
| Alternator Specifications | |
|---|---|
| Manufacturer | LEROY-SOMER Alternator |
| Model | TAL-A473-A |
| Voltage Control Mode | AVR (automatic voltage regulation) |
| Voltage Regulation | ±1% |
| Rated Voltage/Frequency/Power Factors | 400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire |
| Steady State Frequency | Better than 5% |
| No-load Voltage Adjust Range | ≥95% - 105% |
| Insulation Class/Protection Class | H / IP22 |
| Excitation Type | Brushless |
Established in 2005, Mingbang Intelligent Technology Co., LTD occupies 5042 square meters in Yangzhou city, Jiangsu Province - the central manufacturing hub of Southeast China near Shanghai.
We maintain close partnerships with leading power manufacturers including , Perkins, Deutz, Volvo, and Chinese brands SDEC, Yuchai, and Jichai. Our generator sets feature alternators from Stamford, Marathon, Leroy-Somer, and MBKL.
Our comprehensive diesel generator inventory ranges from 10KVA to 3000KVA, including silent, open, containerized, and mobile configurations. We serve diverse applications including:
Contact us anytime for detailed specifications, pricing, and customized solutions for your power generation needs.
We welcome your orders and look forward to serving you!
